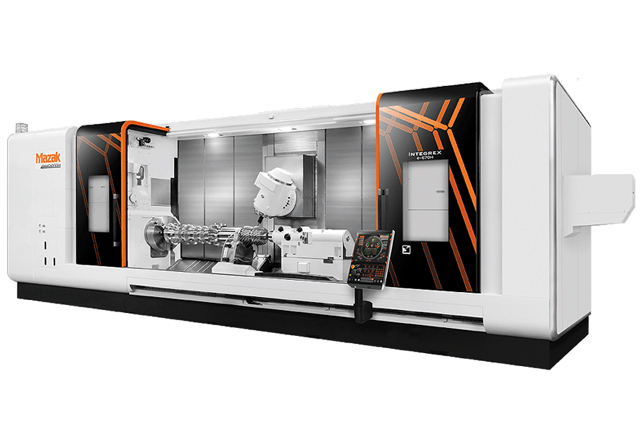

山崎马扎克 INTEGREX e-670H

品牌：山崎马扎克

生产商：山崎马扎克

一键咨询

底价咨询

山崎马扎克 INTEGREX e-670H产品介绍

MACHINE DESCRIPTION:

INTEGREX e-670H II Multi-Tasking Machining Center is a complete fusion of CNC turning center and machining center, forming by far the most advanced Multi-Tasking machine in the industry. Complete all operations in a single setup – turning, milling, boring, drilling and more. The machine delivers precision and performance for heavy, large-diameter, shaft-type workpieces for a wide range of industry applications.

The machine is equipped with a high-output integral spindle motor featuring two gear ranges for a wide scope of heavy-duty machining applications. A drop-worm system with the same positioning accuracy as a machining center rotary table drives the the C-axis (0.0001-degree increments).

The high performance milling spindle is a 50 taper, single spindle turret with automatic tool changer. A heavy-duty roller gear cam makes up the framework of the machine's B-axis that provides milling spindle indexing or contouring and maximum tool point agility.

Fully programmable, servo driven, steady rest and tailstock ensure safe and accurate machining of long workpieces.

MACHINE CHARACTERISTICS:

Milling spindle b-axis travel -30 ~ 210 degrees (.0001 degree min index angle)

60-hp, 10.2"-bore spindle (option)

Optional fully programmable servo driven steady rests

Full 5-axis contouring standard on most models

40-tool automatic tool changer standard ( No.50 Big Plus) – 80 or 120 tool options

Available spindle connections ( MAS BT/ CAPTO C6/ HSK )(option)

Multiple bed lengths available – 120”, 160"and 240"

Optional 40" or 60" long boring bar stocker (3-bar) for deep

机床参数

Specification		中心距 - 3000U mm	中心距 - 4000U mm	中心距 - 6000U mm
加工能力	最大回转直径	1070 mm / 42.13 in	1070 mm / 42.13 in	1070 mm / 42.13 in
	最大加工直径	1070 mm / 42.130 in	1070 mm / 42.130 in	1070 mm / 42.130 in
	最大加工长度	3036 mm / 119.510 in	4047 mm / 159.310 in	6044 mm / 237.930 in
主轴	卡盘尺寸	18 in	18 in	18 in
	最大转速	1600 rpm	1600 rpm	1000 rpm
	电机功率 (30分钟额定)	45 kw / 60.0hp	45 kw / 60.0hp	45 kw / 60.0hp
铣削主轴	B轴行程	240°	240°	240°
	刀库容量	40	40	40
	最大转速	10000 rpm	10000 rpm	10000 rpm
	电机功率 (15分钟额定)	37 kw / 50.0hp	37 kw / 50.0hp	37 kw / 50.0hp
进给轴	行程(X轴)	1025 mm / 40.35 in	1025 mm / 40.35 in	1025 mm / 40.35 in
	行程(Y轴)	670 mm / 26.38 in	670 mm / 26.38 in	670 mm / 26.38 in
	行程(Z轴)	3122 mm / 122.91 in	4138 mm / 162.91 in	6170 mm / 242.91 in
	行程(W轴)	2879 mm / 113.35 in	3890 mm / 153.15 in	5054 mm / 198.98 in
